Consul 安装说明（Linux）

wget -O - https://apt.releases.hashicorp.com/gpg | sudo gpg --dearmor -o /usr/share/keyrings/hashicorp-archive-keyring.gpg
echo "deb [arch=$(dpkg --print-architecture) signed-by=/usr/share/keyrings/hashicorp-archive-keyring.gpg] https://apt.releases.hashicorp.com $(lsb_release -cs) main" | sudo tee /etc/apt/sources.list.d/hashicorp.list
sudo apt update && sudo apt install consul

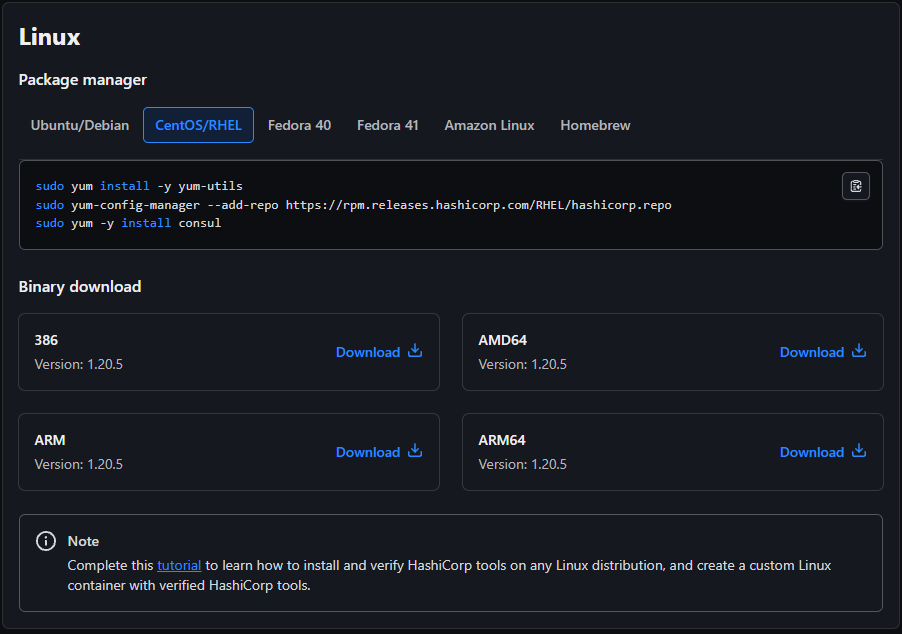

sudo yum install -y yum-utils
sudo yum-config-manager --add-repo https://rpm.releases.hashicorp.com/RHEL/hashicorp.repo
sudo yum -y install consul

sudo dnf install -y dnf-plugins-core
sudo dnf config-manager --add-repo https://rpm.releases.hashicorp.com/fedora/hashicorp.repo
sudo dnf -y install consul

sudo dnf install -y dnf-plugins-core
sudo dnf config-manager addrepo --from-repofile=https://rpm.releases.hashicorp.com/fedora/hashicorp.repo
sudo dnf -y install consul

sudo yum install -y yum-utils shadow-utils
sudo yum-config-manager --add-repo https://rpm.releases.hashicorp.com/AmazonLinux/hashicorp.repo
sudo yum -y install consul

brew tap hashicorp/tap
brew install hashicorp/tap/consul

VERSION="1.20.5"
wget https://releases.hashicorp.com/consul/${VERSION}/consul_${VERSION}_linux_amd64.zip
unzip consul_${VERSION}_linux_amd64.zip
sudo mv consul /usr/local/bin/

[root@localhost ~]# consul version

Consul v1.20.5
Revision 74efe419
Build Date 2025-03-11T10:16:18Z
Protocol 2 spoken by default, understands 2 to 3 (agent will automatically use protocol >2 when speaking to compatible agents)

# Copyright (c) HashiCorp, Inc.
# SPDX-License-Identifier: BUSL-1.1

# Full configuration options can be found at https://www.consul.io/docs/agent/config

# datacenter
# This flag controls the datacenter in which the agent is running. If not provided,
# it defaults to "dc1". Consul has first-class support for multiple datacenters, but
# it relies on proper configuration. Nodes in the same datacenter should be on a
# single LAN.
#datacenter = "my-dc-1"

# data_dir
# This flag provides a data directory for the agent to store state. This is required
# for all agents. The directory should be durable across reboots. This is especially
# critical for agents that are running in server mode as they must be able to persist
# cluster state. Additionally, the directory must support the use of filesystem
# locking, meaning some types of mounted folders (e.g. VirtualBox shared folders) may
# not be suitable.
data_dir = "/opt/consul"

# client_addr
# The address to which Consul will bind client interfaces, including the HTTP and DNS
# servers. By default, this is "127.0.0.1", allowing only loopback connections. In
# Consul 1.0 and later this can be set to a space-separated list of addresses to bind
# to, or a go-sockaddr template that can potentially resolve to multiple addresses.
#client_addr = "0.0.0.0"

# ui
# Enables the built-in web UI server and the required HTTP routes. This eliminates
# the need to maintain the Consul web UI files separately from the binary.
# Version 1.10 deprecated ui=true in favor of ui_config.enabled=true
#ui_config{
#  enabled = true
#}

# server
# This flag is used to control if an agent is in server or client mode. When provided,
# an agent will act as a Consul server. Each Consul cluster must have at least one
# server and ideally no more than 5 per datacenter. All servers participate in the Raft
# consensus algorithm to ensure that transactions occur in a consistent, linearizable
# manner. Transactions modify cluster state, which is maintained on all server nodes to
# ensure availability in the case of node failure. Server nodes also participate in a
# WAN gossip pool with server nodes in other datacenters. Servers act as gateways to
# other datacenters and forward traffic as appropriate.
#server = true

# Bind addr
# You may use IPv4 or IPv6 but if you have multiple interfaces you must be explicit.
#bind_addr = "[::]" # Listen on all IPv6
#bind_addr = "0.0.0.0" # Listen on all IPv4
#
# Advertise addr - if you want to point clients to a different address than bind or LB.
#advertise_addr = "127.0.0.1"

# Enterprise License
# As of 1.10, Enterprise requires a license_path and does not have a short trial.
#license_path = "/etc/consul.d/consul.hclic"

# bootstrap_expect
# This flag provides the number of expected servers in the datacenter. Either this value
# should not be provided or the value must agree with other servers in the cluster. When
# provided, Consul waits until the specified number of servers are available and then
# bootstraps the cluster. This allows an initial leader to be elected automatically.
# This cannot be used in conjunction with the legacy -bootstrap flag. This flag requires
# -server mode.
#bootstrap_expect=3

# encrypt
# Specifies the secret key to use for encryption of Consul network traffic. This key must
# be 32-bytes that are Base64-encoded. The easiest way to create an encryption key is to
# use consul keygen. All nodes within a cluster must share the same encryption key to
# communicate. The provided key is automatically persisted to the data directory and loaded
# automatically whenever the agent is restarted. This means that to encrypt Consul's gossip
# protocol, this option only needs to be provided once on each agent's initial startup
# sequence. If it is provided after Consul has been initialized with an encryption key,
# then the provided key is ignored and a warning will be displayed.
#encrypt = "..."

# retry_join
# Similar to -join but allows retrying a join until it is successful. Once it joins
# successfully to a member in a list of members it will never attempt to join again.
# Agents will then solely maintain their membership via gossip. This is useful for
# cases where you know the address will eventually be available. This option can be
# specified multiple times to specify multiple agents to join. The value can contain
# IPv4, IPv6, or DNS addresses. In Consul 1.1.0 and later this can be set to a go-sockaddr
# template. If Consul is running on the non-default Serf LAN port, this must be specified
# as well. IPv6 must use the "bracketed" syntax. If multiple values are given, they are
# tried and retried in the order listed until the first succeeds. Here are some examples:
#retry_join = ["consul.domain.internal"]
#retry_join = ["10.0.4.67"]
#retry_join = ["[::1]:8301"]
#retry_join = ["consul.domain.internal", "10.0.4.67"]
# Cloud Auto-join examples:
# More details - https://www.consul.io/docs/agent/cloud-auto-join
#retry_join = ["provider=aws tag_key=... tag_value=..."]
#retry_join = ["provider=azure tag_name=... tag_value=... tenant_id=... client_id=... subscription_id=... secret_access_key=..."]
#retry_join = ["provider=gce project_name=... tag_value=..."]

# 数据中心名称
datacenter = "consul-cluster"

# 节点名称
node_name = "my-consul-sever"

# 启用当前节点作为 Consul 服务器
server = true

# 设置预期的服务器节点数量，当达到这个数量时，集群将自动启动
bootstrap_expect = 1

# 指定 Consul 数据的存储目录
data_dir = "Data"

# 设置当前节点的绑定地址（用于集群内的通信）
bind_addr = "127.0.0.1"

# 设置允许的客户端连接地址
client_addr = "0.0.0.0"

# 启用 Consul Web UI
ui_config {
  enabled = true
}

# 配置端口
ports {
  serf_lan = 8301   # 默认 Serf LAN 端口
  serf_wan = 8302   # 默认 Serf WAN 端口
  server = 8300     # Consul 服务器端口
  http = 8500       # HTTP API 端口（UI 端口）
  dns = 8600        # DNS 端口
}

# 设置日志级别（可选，默认为 "INFO"）
log_level = "INFO"

[Unit]
Description="HashiCorp Consul - A service mesh solution"
Documentation=https://www.consul.io/
Requires=network-online.target
After=network-online.target
ConditionFileNotEmpty=/etc/consul.d/consul.hcl

[Service]
Type=notify
EnvironmentFile=-/etc/consul.d/consul.env
#User=consul
#Group=consul
#ExecStart=/usr/bin/consul agent -config-dir=/etc/consul.d/
ExecStart=/usr/bin/consul agent -config-file=/etc/consul.d/consul.hcl
ExecReload=/bin/kill --signal HUP $MAINPID
KillMode=process
KillSignal=SIGTERM
Restart=on-failure
LimitNOFILE=65536

[Install]
WantedBy=multi-user.target

[Unit]
Description=Consul
Documentation=https://www.consul.io/docs/
Wants=network-online.target
After=network-online.target

[Service]
#ExecStart=/usr/local/bin/consul agent -config-dir /etc/consul.d/
ExecStart=/usr/local/bin/consul agent -config-file=/etc/consul.d/consul.hcl
ExecReload=/bin/kill -HUP $MAINPID
LimitNOFILE=65536

[Install]
WantedBy=multi-user.target

sudo systemctl start consul
sudo systemctl enable consul

consul agent -dev

consul agent -config-file /path/to/consul.hcl

sudo systemctl start consul

sudo systemctl enable consul

sudo systemctl status consul

consul members
